1. Xiaoke hardware module replacement plan (Linux)

  This document applies to hardware module replacement on the mainboards of Xiaoke Linux hosts (H8/L8 and similar models).

1.1. 1. Hardware replacement of third-party smart home modules

  A third-party smart home vendor may replace the Tuya zigbee hardware module on the Xiaoke host with its own hardware module (such as a Bluetooth or zigbee module) in order to integrate the hardware gateway and the central control screen into one unit, software.

1.2. 2.

  For information about the Tuya hardware module TYZS13, see "TYZS13+ Module Specification_Tuya Smart_Document Center"

  Click to download to view the document

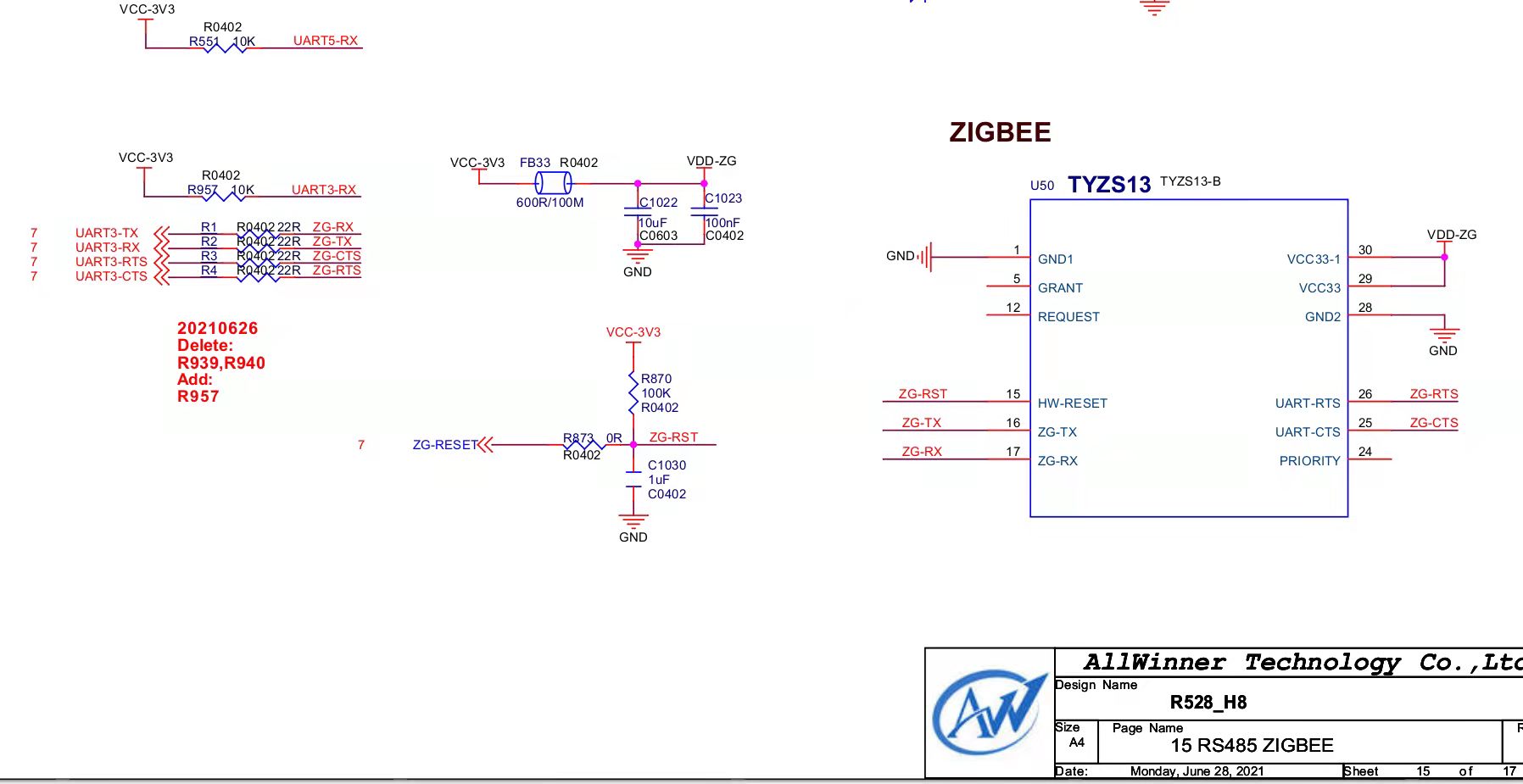

1.3. 3. Xiaoke mainboard TYZS13 wiring schematic

1.4. 4. Development workflow

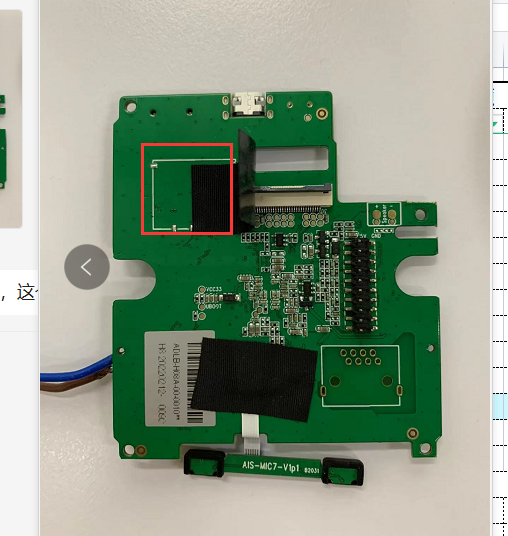

  Purchase one Xiaoke Linux host; the standard edition is sufficient. The standard edition uses the same PCB as the gateway edition but does not ship with the Tuya gateway module, so nothing has to be removed.
